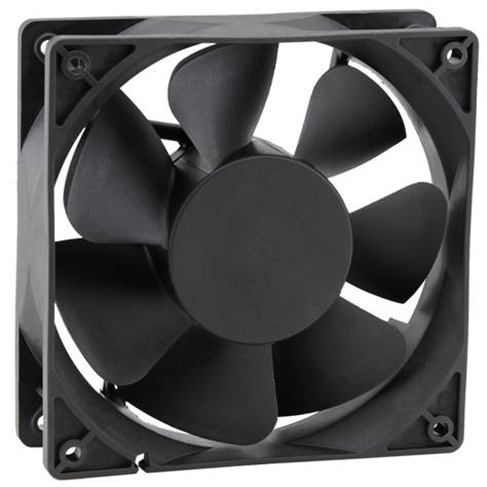

产品类别：轴流风扇（DC)
品牌：MNE FAN
● General Specifications（一般规格）
○ Material:Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type RED Wire Positive(+)Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:-10℃～+70℃(Operating)-40℃～+70℃(Storage)

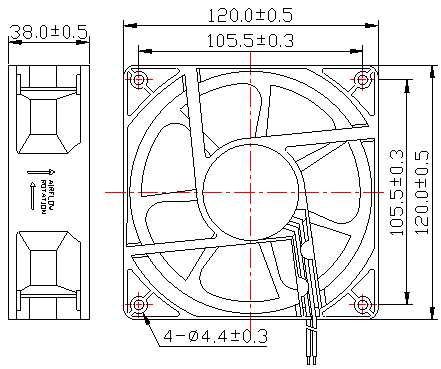

● Dimensions Drawing(外观图）
● Characteristic Curves（特性曲线）
● Specifications（规格）
|
（型号） Model |
（轴承类型） Bearing Type |
（电压） Rated Voltage |
（电压范围） Operation Voltage |
（电流） Current |
（转数） Speed |
（风量） Air Flow |
（风压） Static Pressure |
(噪音） Noise Level |
（重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| JDH1238S | Sleeve | 12 | 10.8～13.2 | 0.60 | 3000 | 119.49 | 7.81 | 44.5 | 265 |
| JDM1238S | 0.45 | 2700 | 107.54 | 6.66 | 41.5 | ||||
| JDL1238S | 0.30 | 2400 | 79.66 | 5.26 | 40.0 | ||||
| JDH1238B | Ball | 0.60 | 3000 | 119.49 | 7.81 | 44.5 | |||
| JDM1238B | 0.45 | 2700 | 107.54 | 6.66 | 41.5 | ||||
| JDL1238B | 0.30 | 2400 | 79.66 | 5.26 | 40.0 | ||||
| JDH1238S | Sleeve | 24 | 21.6～26.4 | 0.40 | 3000 | 119.49 | 7.81 | 44.5 | |
| JDM1238S | 0.30 | 2700 | 107.54 | 6.66 | 41.5 | ||||
| JDL1238S | 0.20 | 2400 | 79.66 | 5.26 | 40.0 | ||||
| JDH1238B | Ball | 0.40 | 3000 | 119.49 | 7.81 | 44.5 | |||
| JDM1238B | 0.30 | 2700 | 107.54 | 6.66 | 41.5 | ||||
| JDL1238B | 0.20 | 2400 | 79.66 | 5.26 | 40.0 |
