产品类别：轴流风扇（DC)
品牌：MNE FAN
○ Material:Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type RED Wire Positive(+)Black Wire Negative(-)
○ Insulation Resistance:10MΩ Or Over With a DC250V Megger
○ Dielectric Withstand Voltage:AC500V 1S
○ Allowable Ambient Temperature Range:-10℃～+70℃(Operating)-40℃～+70℃(Storage)

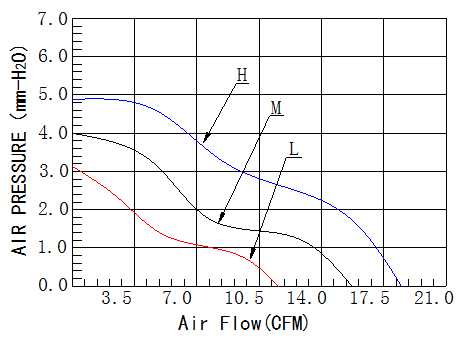

● Characteristic Curves（特性曲线）

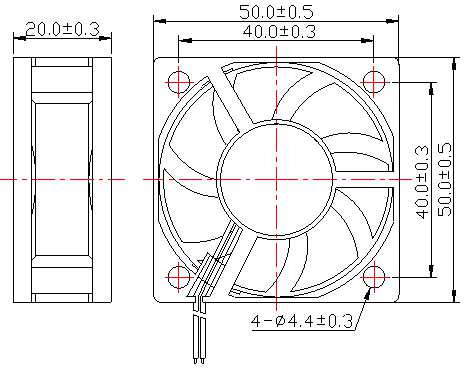

● Dimensions Drawing(外观图）
● Characteristic Curves（特性曲线）
● Specifications（规格）
|
（型号） Model |
（轴承类型） Bearing Type |
（电压） Rated Voltage |
（电压范围） Operation Voltage |
（电流） Current |
（转数） Speed |
（风量） Air Flow |
（风压） Static Pressure |
(噪音） Noise Level |
（重量） Weight |
| VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
| JDH5020S | Sleeve | 5 | 4.5～5.5 | 0.32 | 5500 | 18.33 | 4.89 | 35.2 | 32 |
| JDM5020S | 0.26 | 4500 | 14.99 | 4.00 | 28.8 | ||||
| JDL5020S | 0.18 | 3500 | 11.66 | 3.11 | 22.4 | ||||
| JDH5020B | Ball | 0.32 | 5500 | 18.33 | 4.89 | 35.2 | |||
| JDM5020B | 0.26 | 4500 | 14.99 | 4.00 | 28.8 | ||||
| JDL5020B | 0.18 | 3500 | 11.66 | 3.11 | 22.4 | ||||
| JDH5020S | Sleeve | 12 | 10.8～13.2 | 0.20 | 5500 | 18.33 | 4.89 | 35.2 | |
| JDM5020S | 0.15 | 4500 | 14.99 | 4.00 | 28.8 | ||||
| JDL5020S | 0.09 | 3500 | 11.66 | 3.11 | 22.4 | ||||
| JDH5020B | Ball | 0.20 | 5500 | 18.33 | 4.89 | 35.2 | |||
| JDM5020B | 0.15 | 4500 | 14.99 | 4.00 | 28.8 | ||||
| JDL5020B | 0.09 | 3500 | 11.66 | 3.11 | 22.4 |
